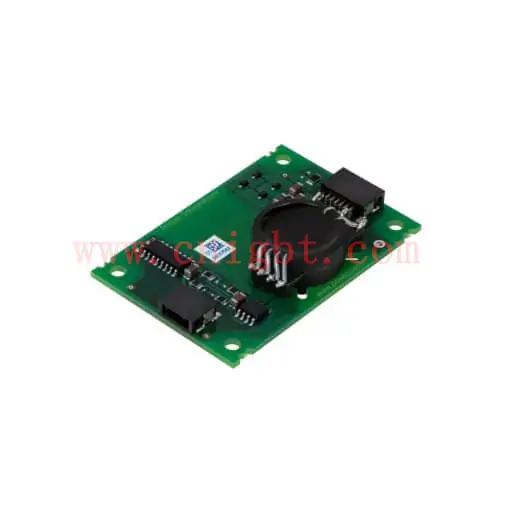

The ISO6125R-33 is a single channel insulated DC-DC converter, suitable as a power supply for 3300 V IGBT drivers. The ISO5125I complements Power Integrations’ 1SP0630 and 1SP0635 Digital SCALE-2 high-voltage IGBT drivers.
Highly Integrated, Compact Footprint

Ready-to-use DC-DC converter solution for IGBT drivers up to 3300V
10 W output power at maximum ambient temperature
Electrical primary-side interface with basic insulation
-40 ¡ãC to +85 ¡ãC operating ambient temperature

Protection / Safety Features

Creepage distance 21 mm
Clearance distance 21 mm
No electrolytic capacitors
Outstanding coupling capacitance 10 pF
Applied double sided conformal coating (by using ELPEGUARD SL1307 FLZ/2 from Lackwerke Peters)

Full Safety and Regulatory Compliance

100% production partial discharge and HIPOT test of transformer
Clearance and creepage distances meet requirements for basic insulation
