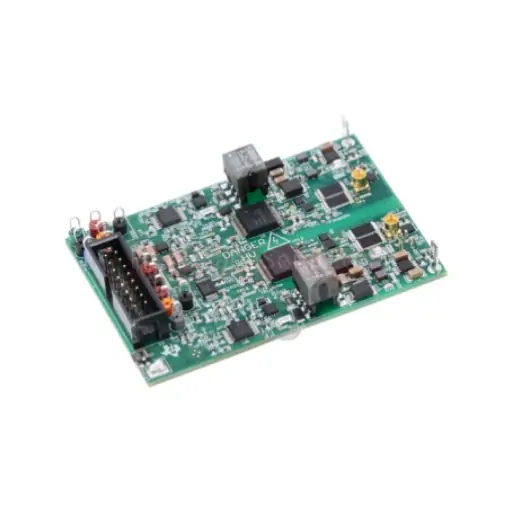

The UCC2189X5YQEVM-096 is a compact, half-bridge gate driver board consisting of two single-channel isolated gate drivers. It provides isolated bias supply, drive current and protection needed for driving several different models of Wolfspeed silicon-carbide (SiC) MOSFET modules and other IGBT or SiC MOSFET modules with a similar pinout.

Features
Directly compatible with Wolfspeed’s FM3 and XM3 modules
Compatible with Wolfspeed’s BM3 modules with the use of an adapter board
LM5185 flyback controllers supply positive and negative bias to the secondary side
Status LEDs indicate power-good and fault feedback from each driver
Include protection features such as short-circuit detection and active short-circuit functionality
Test points for all critical nodes to expedite debugging
