描述

SKU 10D27Q：

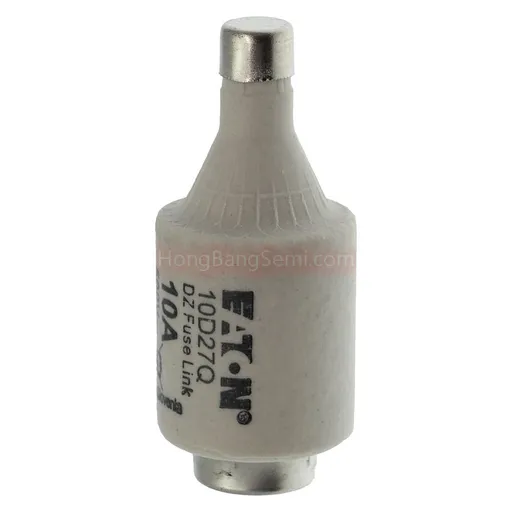

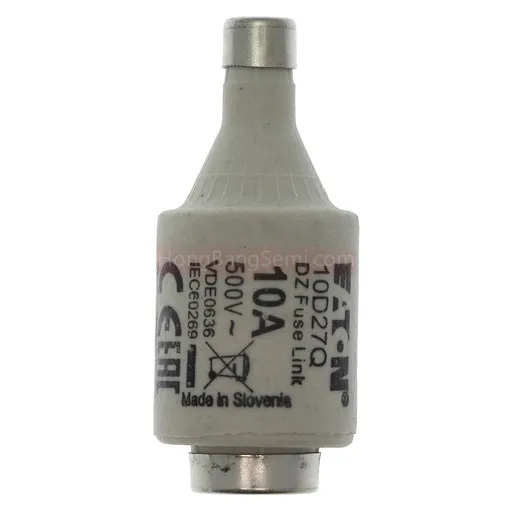

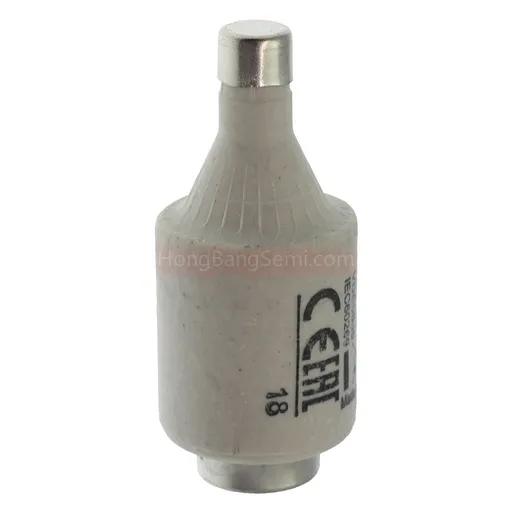

descriptionLabel Eaton Bussmann series low voltage D fuse, Fast-acting, 500V, 10A, 50 kAIC, Non Indicating, fuse, Class gR, Red：
常用规格
Product Name： Eaton Bussmann series low voltage D fuse
Catalog Number： 10D27Q
UPC： 051712830393
Product Length/Depth： 50 mm
Product Height： 22 mm
Product Width： 22 mm
Product Weight： 26.88 g
Compliances： CE Marked RoHS Compliant
Certifications： VDE IEC 60269 DIN EN 60269-3 (VDE 0636 Part 30) DIN EN 60269-1 (VDE 0636 Part 10) DIN VDE 0636-301
产品规格
Amperage Rating： 10 A
Fuse size： DII
Breaking capacity： 50 kA
Construction size (fuse inserts)： DII
Rated voltage AC： 500 V
Class： Class gR
Fuse type： D27Q – Fast acting
Utilization category： gR (general purpose semiconductor protection)
Accessory/spare part type： 10GD27 Red screw cap gauge piece
Color： Red
Interrupt rating： 50 kAIC
Fuse indicator： Non-indicating
Connection： Other
Construction： D2
Construction size： DII
Fuse shape： Bottle
Response time： Fast-acting
Suitable for： E27/DII Fuse base TFD27 Fuse base screw fixing SFRD27 Fuse base DIN-Rail mount TFRD27 Fuse base DIN-Rail mount
Material： White ceramic body

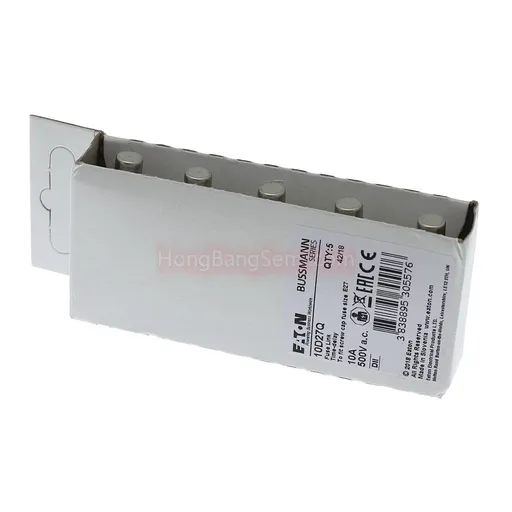

Packaging type： Standard
Release characteristic： Fast (F)
Voltage rating： 500 V
Type： Fuse
Special features： Fast-acting
Application： For domestic and general industrial applications
