SKU 4D27R：

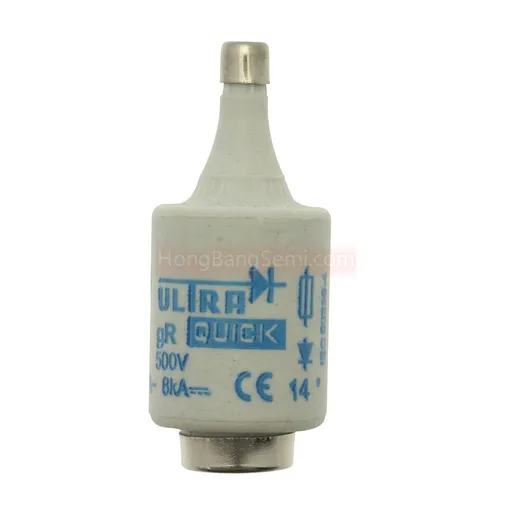

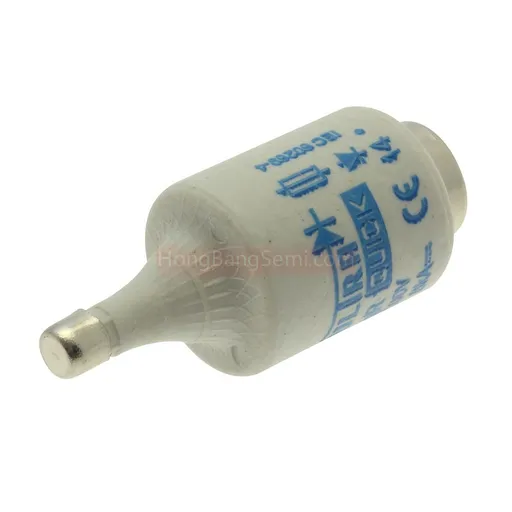

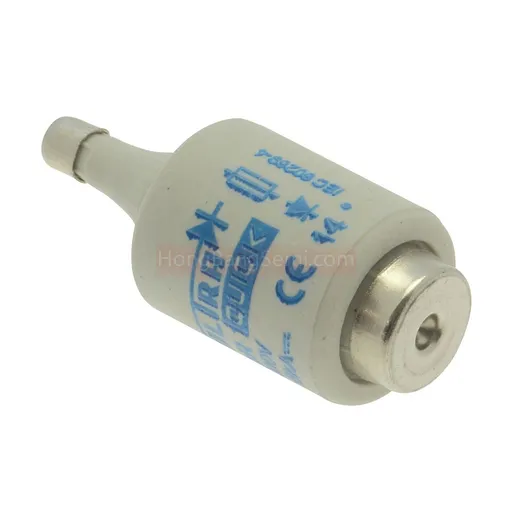

descriptionLabel Eaton Bussmann series low voltage D fuse, Ultra-rapid, 500V, 4A, Non Indicating, fuse, Class gR, Ultra rapid, Brown, Ceramic body：
常用规格
Product Name： Eaton Bussmann series low voltage D fuse
Catalog Number： 4D27R
UPC： 051712552752
Product Length/Depth： 50 mm
Product Height： 22 mm
Product Width： 22 mm
Product Weight： 28.04 g
Compliances： GoST-R CE Marked RoHS Compliant
Certifications： IEC 60269 VDE DIN EN 60269-3 (VDE 0636 Part 30) DIN EN 60269-1 (VDE 0636 Part 10) DIN VDE 0636-301
产品规格
Amperage Rating： 4 A
Fuse size： DII
Breaking capacity： 50 kA
Construction size (fuse inserts)： DII
Rated voltage AC： 500 V
Class： Class gR
Fuse type： D27R – Ultra rapid
Utilization category： gR (general purpose semiconductor protection)
Accessory/spare part type： 4GD27 Brown screw cap gauge piece
Color： Brown
Interrupt rating： 50 kAIC
Fuse indicator： Non-indicating
Connection： Other
Construction： D2
Construction size： DII
Fuse shape： Bottle
Response time： Ultra rapid
Suitable for： E27/DII Fuse base TFD27 Fuse base screw fixing SFRD27 Fuse base DIN-Rail mount TFRD27 Fuse base DIN-Rail mount
Material： White ceramic body
Release characteristic： Super fast (FF)
Quantity： 25
Voltage rating： 500 V
Type： fuse
Special features： Ultra-rapid
Application： For domestic and general industrial applications
