SKU 63D33Q：
descriptionLabel Eaton Bussmann series low voltage D fuse, Fast-acting, 500V, 63A, 50 kAIC, Non Indicating, fuse, Class gR, Fast acting, Copper, Ceramic body：
常用规格

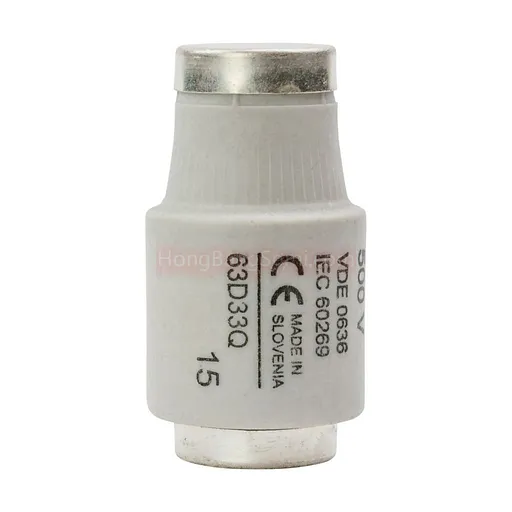

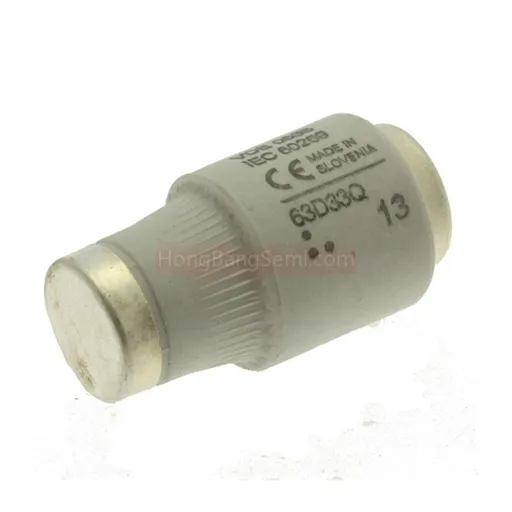

Product Name： Eaton Bussmann series low voltage D fuse
Catalog Number： 63D33Q
UPC： 051712836456
Product Length/Depth： 50 mm
Product Height： 27 mm
Product Width： 27 mm
Product Weight： 53.8 g
Compliances： CE Marked GoST-R RoHS Compliant
Certifications： IEC 60269 VDE DIN EN 60269-3 (VDE 0636 Part 30) DIN EN 60269-1 (VDE 0636 Part 10) DIN VDE 0636-301
产品规格
Amperage Rating： 63 A
Fuse size： DIII
Breaking capacity： 50 kA
Construction size (fuse inserts)： DIII
Rated voltage AC： 500 V
Class： Class gR
Fuse type： D33Q – Fast acting
Utilization category： gR (general purpose semiconductor protection)
Accessory/spare part type： 63GD33 Copper screw cap gauge piece
Color： Copper
Interrupt rating： 50 kAIC
Fuse indicator： Non-indicating
Connection： Other
Construction： D3
Construction size： DIII
Fuse shape： Bottle
Response time： Fast-acting
Suitable for： E33/DIII Fuse base TFD33 Fuse base screw fixing SFRD33 Fuse base DIN-Rail mount TFRD33 Fuse base DIN-Rail mount
Material： White ceramic body
Packaging type： Standard
Release characteristic： Fast (F)
Quantity： 25
Voltage rating： 500 V
Type： Fuse
Special features： Fast-acting
Application： For domestic and general industrial applications
