描述

SKU 6D16Q :

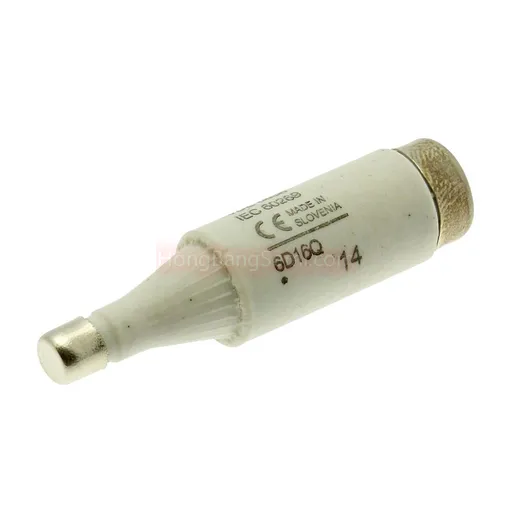

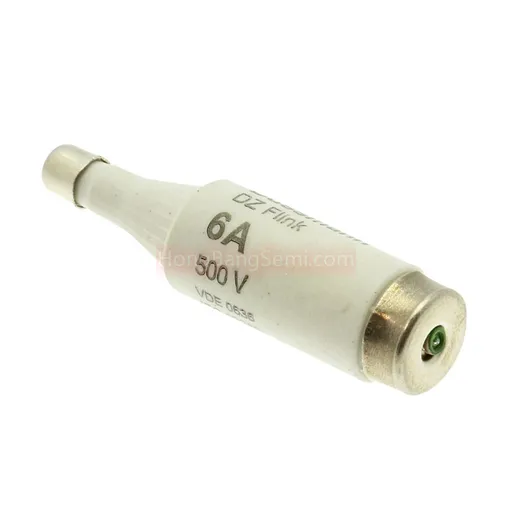

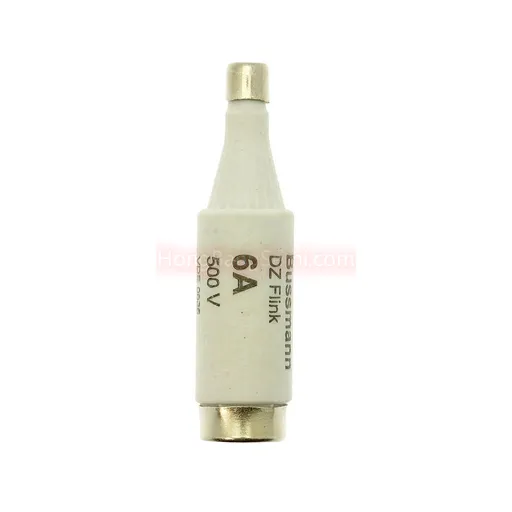

descriptionLabel Eaton Bussmann series low voltage D fuse, Fast-acting, 500V, 6A, 50 kAIC, Non Indicating, fuse, Class gR, Holder, Green :
常用规格
Product Name : Eaton Bussmann series low voltage D fuse
Catalog Number : 6D16Q
UPC : 051712837064
Product Length/Depth : 50 mm
Product Height : 13.2 mm
Product Width : 13.2 mm
Product Weight : 10.5 g
Compliances : CE Marked RoHS Compliant
Certifications : VDE IEC 60269 DIN EN 60269-3 (VDE 0636 Part 30) DIN EN 60269-1 (VDE 0636 Part 10) DIN VDE 0636-301
产品规格
Amperage Rating : 6 A
Fuse size : DI
Breaking capacity : 50 kA
Construction size (fuse inserts) : DI
Rated voltage AC : 500 V
Class : Class gR
Fuse type : D16Q – Fast acting
Utilization category : gR (general purpose semiconductor protection)
Accessory/spare part type : 6GD16 Green screw cap gauge piece
Color : Green
Interrupt rating : 50 kAIC
Fuse indicator : Non-indicating
Connection : Other
Construction : D1
Construction size : DI
Fuse shape : Bottle
Response time : Fast-acting
Suitable for : E16/DI Fuse base
Material : White ceramic body
Mounting method : Holder
Packaging type : Standard
Release characteristic : Fast (F)
Voltage rating : 500 V
Type : Fuse
Special features : Fast-acting
Application : For domestic and general industrial applications
