描述

SKU 6D27：

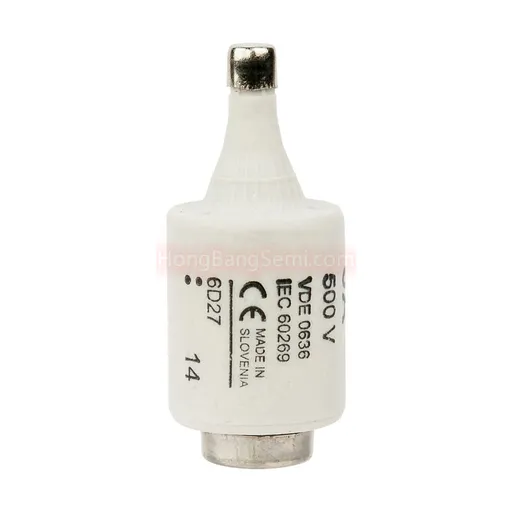

descriptionLabel Eaton Bussmann series low voltage D fuse, 500V, 6A, 50 kAIC, Non Indicating, fuse, Class C gL/gG, Time delay, Green, Ceramic body：
常用规格
Product Name： Eaton Bussmann series low voltage D fuse
Catalog Number： 6D27
UPC： 051712837071
Product Length/Depth： 50 mm
Product Height： 21.5 mm
Product Width： 21.5 mm
Product Weight： 26.12 g
Compliances： CE Marked GoST-R RoHS Compliant
Certifications： IEC 60269 VDE DIN EN 60269-3 (VDE 0636 Part 30) DIN EN 60269-1 (VDE 0636 Part 10) DIN VDE 0636-301
产品规格
Amperage Rating： 6 A
Fuse size： DII
Breaking capacity： 50 kA
Construction size (fuse inserts)： DII
Rated voltage AC： 500 V
Class： Class C gL/gG
Fuse type： D27 -Time delay
Utilization category： gL/gG (cable protection/equipment protection)
Accessory/spare part type： 6GD27 Green screw cap gauge piece
Color： Green
Interrupt rating： 50 kAIC
Fuse indicator： Non-indicating
Connection： Other
Construction： D2
Construction size： DII
Fuse shape： Bottle
Response time： Time-delay
Suitable for： E27/DII Fuse base TFD27 Fuse base screw fixing SFRD27 Fuse base DIN-Rail mount TFRD27 Fuse base DIN-Rail mount
Material： White ceramic body
Release characteristic： Time-lag
Quantity： 25
Voltage rating： 500 V
Type： fuse
Application： For domestic and general industrial applications
