• DrMOS + Smart Power Stages (SPS)
– AOZ5518QI is a 65A high power DrMOS module in QFN5x5 package. It uses PWM and FCCM inputs for accurate control of the power MOSFETs switching activities. It is compatible with 3V and 5V logic and supports Tri-State PWM. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance.
支持顺丰速运，最快隔日达
同型号发票，一对一
老客户享受更优惠的价格
• Brand : AOS

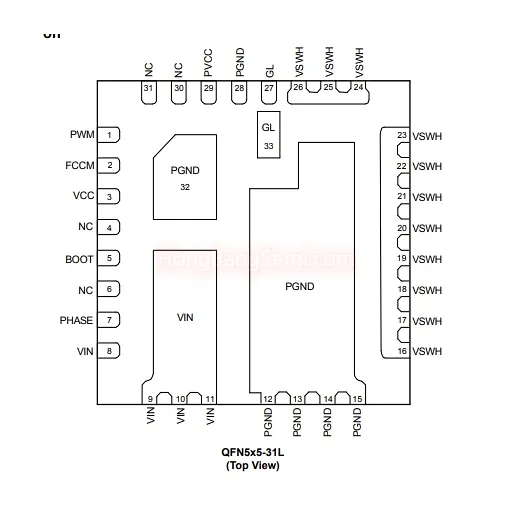

• Package : QFN5x5-31L
• Power Stage Type : DrMOS
• Min Vin (V) : 4.5
• Max Vin (V) : 25
• Abs Max Vin (V) : 30
• Max DC I (A) : 65
• Max Peak I (A) : 120
• PWM Input (V) : 5
• Tri-State Range (V) : 1.6 – 3.4
• Max Frequency (MHz) : 2
• Shutdown Control : FCCM=TS, PWM=TS
• Enable Diode Emulation Mode : FCCM = L
• Thermal Flag : No
• OCP (A) : No
• HSD : No
• Pre-OVP : No
| 重量 | 23.81 克 |
|---|---|
| 尺寸 | 16.86 × 12.92 × 2.53 厘米 |
